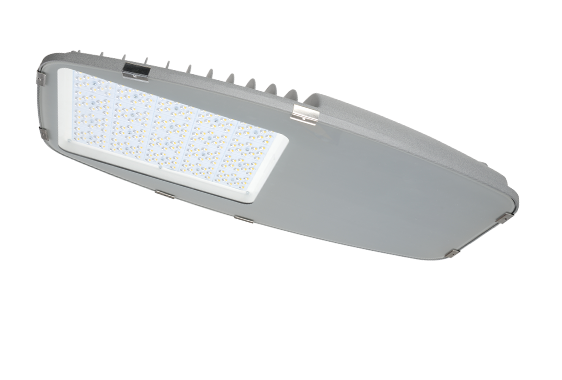

ECO100FMP72-108

Street light fitting suitable for pole heights from 8 to 12m.

High efficiency of total fitting over 117lumen/watt.

Technical data

• Body out of high pressure diecast alloy with low content in copper.

Double paint epoxy Ral 7040.

• Led array 6×12(72), 9X12(108) mid power leds LM80B10>50.000 h.
• Cover in glass 4mm extra clean IK09 rated
• Lens from optical acrylic with high rendering and 5year guarantee against yellowing
• Led / Lens system replacable with M4 screws for easy maintenance / upgrade.
• Suitable for side mounting in D60mm.

Control gear

 IP66 with 10KV protection available in:

• ONE4ALL DALI 4 dim programmable

IP66 fitting Class II or I
