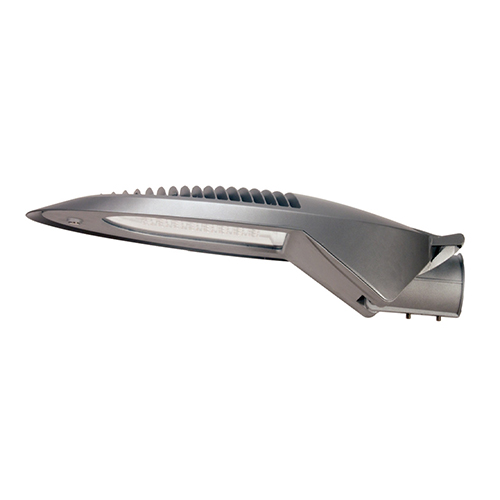

MAX100F24

Street light fitting suitable for pole heights from 6 to 12m.

High efficiency of total fitting up to 125lumen/watt.

 Technical data

• Body out of high pressure diecast alloy with low content in copper.

Double paint epoxy Ral 7040.

• Led array 2×12 high power leds LM80B10>100.000h
• Cover in glass 4mm extra clean IK09 rated
• Lens from optical acrilic with high rendering and 10 year guarantee against yellowing
• Led / Lens system replacable with M4 screws for easy maintenance / upgrade.
• Suitable for side or top mounting in D60mm with 0-15^o adaption

Control gear

IP66 with 10KV protection ONE4ALL DALI 4 dim programmable

IP66 fitting Class II or I
